How to get this shape?

SylvanSylvan Posts: 2,711
edited December 1969 in Hexagon Discussion

I feel really stupid for asking this, but how can I get the depicted shape?
I tried making the shape with lines but there is no way to fill it.
Tried several other things but no luck.
Thanks in advance!

64 x 158 - 2K

Comments

  • m_m_italym_m_italy Posts: 386
    edited December 1969

    I do not speak English.

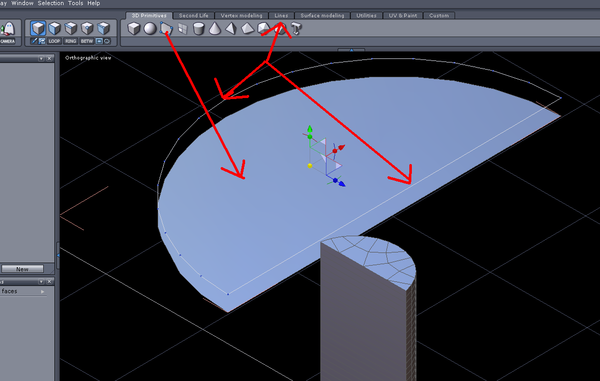

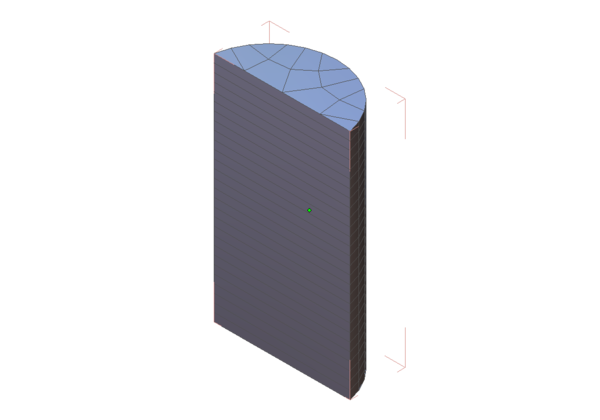

    Have you tried with the cylinder?
    Exist many possibilities ....

    1148 x 803 - 54K
  • m_m_italym_m_italy Posts: 386
    edited December 1969

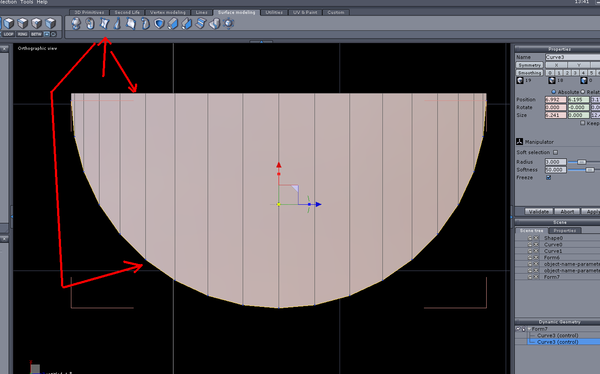

    Oppure con linea - arco and superficie.

    1180 x 750 - 108K
  • m_m_italym_m_italy Posts: 386
    edited December 1969

    Oppure "connect curve"
    Curva uno
    Curva due
    connect

    1387 x 864 - 123K
  • m_m_italym_m_italy Posts: 386
    edited December 1969

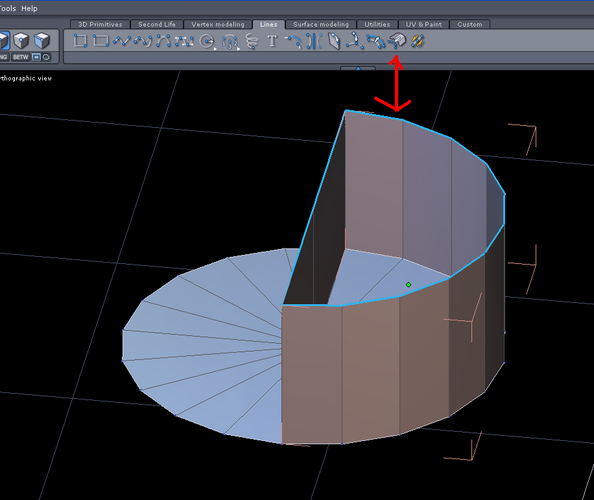

    Ancora:
    circonferenza
    1/2
    estrazione linea
    estrudi linea

    916 x 771 - 78K
  • SylvanSylvan Posts: 2,711
    edited March 2015

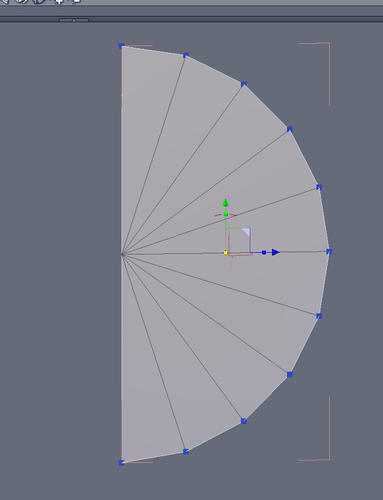

    Grazie, grazie! :D
    I did it, thank you!

    690 x 900 - 42K
    Post edited by Sylvan on
  • m_m_italym_m_italy Posts: 386
    edited December 1969

    What you have to realize?
    Solid?
    Surface?

  • SylvanSylvan Posts: 2,711
    edited December 1969

    m_m_italy said:
    What you have to realize?
    Solid?
    Surface?

    Surface :)
    I used the Line and made a circle, then deleted 1/2 off the circle

  • m_m_italym_m_italy Posts: 386
    edited December 1969

    Estroyer said:
    m_m_italy said:
    What you have to realize?
    Solid?
    Surface?

    Surface :)
    I used the Line and made a circle, then deleted 1/2 off the circle

    Resolved?

  • m_m_italym_m_italy Posts: 386
    edited December 1969

    m_m_italy said:
    Estroyer said:
    m_m_italy said:
    What you have to realize?
    Solid?
    Surface?

    Surface :)
    I used the Line and made a circle, then deleted 1/2 off the circle

    Resolved?

    Sì
    :-)

  • SylvanSylvan Posts: 2,711
    edited December 1969

    m_m_italy said:
    Estroyer said:
    m_m_italy said:
    What you have to realize?
    Solid?
    Surface?

    Surface :)
    I used the Line and made a circle, then deleted 1/2 off the circle

    Resolved?
    Yes! :)
    Grazie!

  • m_m_italym_m_italy Posts: 386
    edited December 1969

    Estroyer said:
    m_m_italy said:
    Estroyer said:
    m_m_italy said:
    What you have to realize?
    Solid?
    Surface?

    Surface :)
    I used the Line and made a circle, then deleted 1/2 off the circle

    Resolved?
    Yes! :)
    Grazie!

    Prego.
    Bye
